UBStor Classic Waste System

Product Name: Waste Bin Pullout System

Product Description:

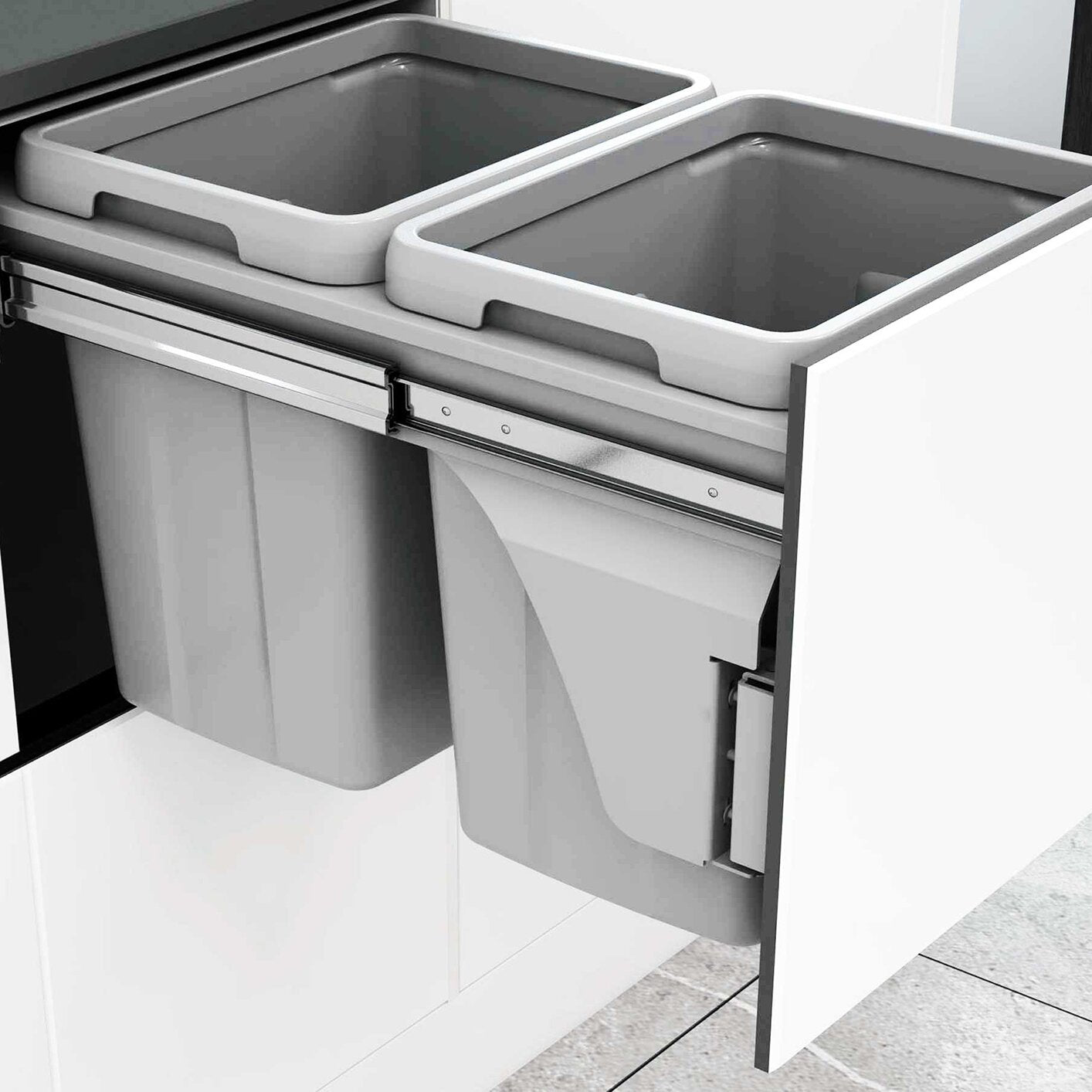

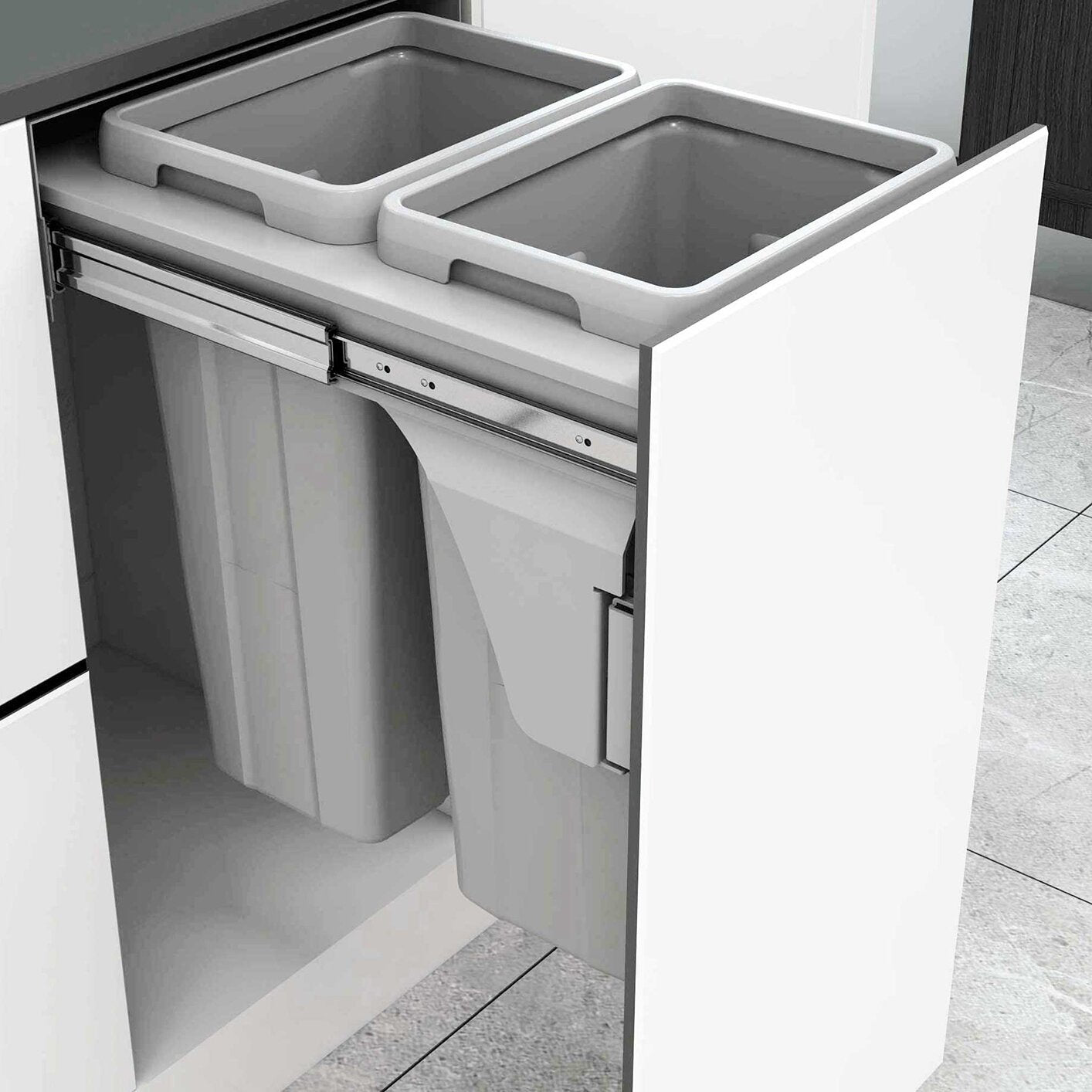

A modern waste bin pullout system designed for seamless integration into your base cabinet. Featuring a fitted insert and non-removable metal lid, the unit mounts like a drawer and includes integrated door adjustment for a clean, precise fit. It runs on durable, full-extension soft-close 45kg (100lbs) ball bearing slides for smooth, quiet operation.

A large, sturdy door mount bracket provides added stability and support. Includes two removable bins in white or dark grey, each with an integrated handle and clip-on bag holder. The metal lid helps contain and suppress odours.

Compatible with 400mm cabinets and side panels (gables) between 16mm and 19mm (5/8” to 3/4”) thick, using self-adjusting spacers for easy installation.

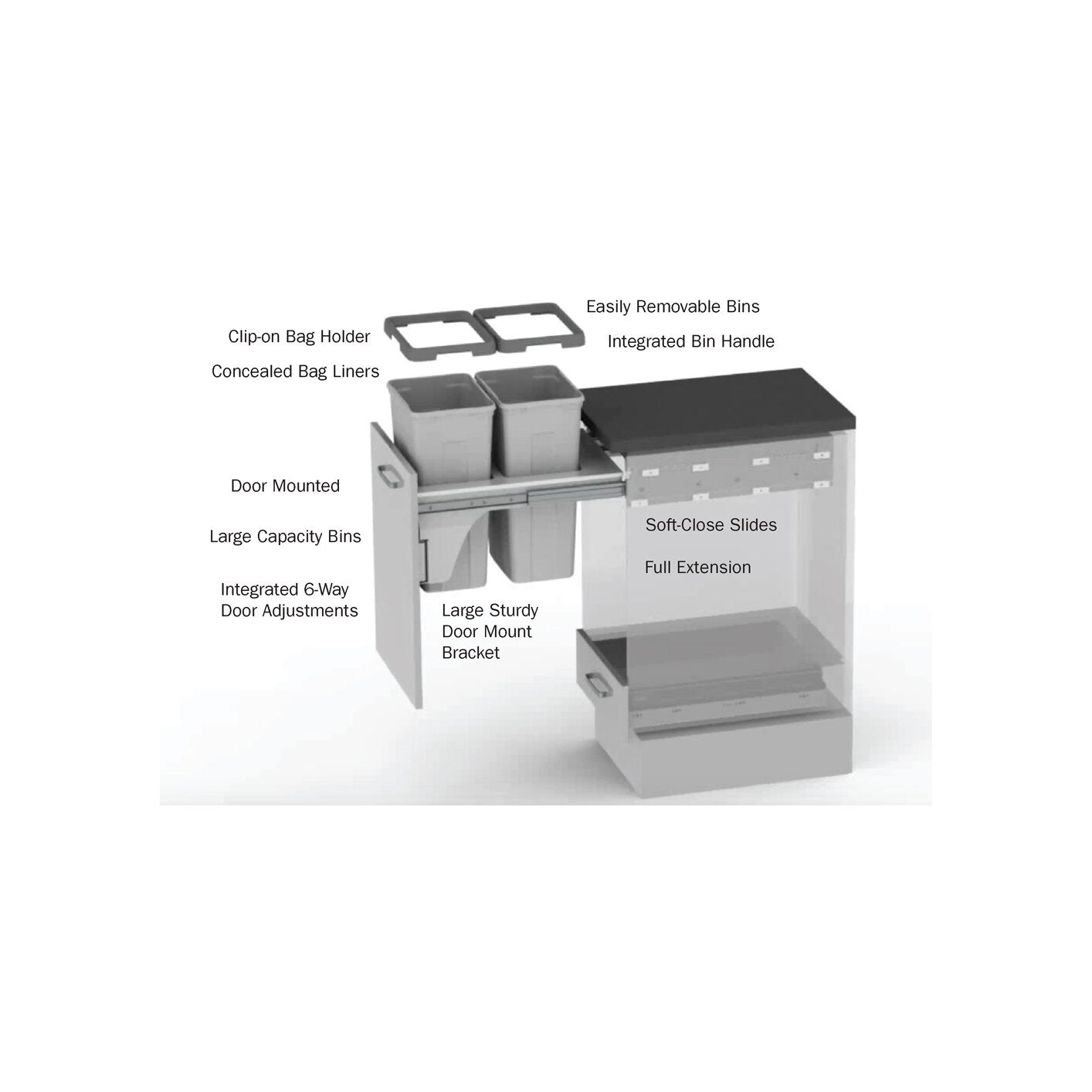

Product Advantages:

• Modern European design tailored for 400mm cabinets

• Large capacity waste bins available in 13L, 18L, and 35L sizes

• Clip-on ring conceals bag liner and features an integrated handle

• Fixed metal lid helps reduce and suppress odours

• Convenient door mount system allows for easy, hands-free access

• Full-extension slides make it easy to remove bins and clear countertops

• Equipped with 45kg (100lbs) full-extension soft-close ball-bearing slides

Detailed Specifications

1. This modern side-mount waste bin pullout is designed for 400 mm (16 in) cabinets and comes with two included 13L grey bins, ideal for separating waste and recycling. It features a soft-close mechanism and full-extension, 45 kg (100 lbs) ball-bearing slides for smooth, quiet operation and easy access. The fixed metal lid helps suppress odors, while the clip-on rings fully conceal bag liners and include integrated handles for easy removal. Designed for simple installation, it fits cabinet interiors with a depth of 506 mm, height of 340 mm, and width between 362–368 mm.

2. This side-mount waste bin pullout system is designed for 400 mm (16 in) cabinets and includes two 13L white bins, ideal for organizing waste and recycling. It features a soft-close mechanism and full-extension 45 kg (100 lbs) ball-bearing slides for smooth, effortless operation. The fixed metal lid helps contain odours, while the clip-on rings securely hold and conceal bag liners, each with an integrated handle for easy removal. Designed for convenience and durability, it fits cabinet interiors with a depth of 506 mm, height of 340 mm, and width between 362–368 mm.

3. This side-mount waste bin pullout is designed for 400 mm (16 in) cabinets and includes two 18L grey bins, perfect for efficient waste separation. It features a soft-close mechanism and full-extension 45 kg (100 lbs.) ball-bearing slides for smooth, stable operation. A fixed metal lid helps suppress odors, while clip-on rings conceal bag liners and include integrated handles for easy removal. Ideal for taller base cabinets, it fits interior dimensions of 506 mm depth, 470 mm height, and 362–368 mm width. Durable and user-friendly, this system combines functionality with a clean, modern finish.

4. This side-mount waste bin pullout system is designed for 400 mm (16 in) cabinets and includes two 18L white bins, ideal for organized waste and recycling. It features a soft-close mechanism with full-extension 45 kg (100 lbs) ball-bearing slides for smooth, quiet operation. The fixed metal lid helps contain odours, while clip-on rings conceal bag liners and include integrated handles for easy removal. Suitable for taller cabinets, it fits interior dimensions of 506 mm depth, 470 mm height, and 362–368 mm width, combining practicality with a clean, modern design.

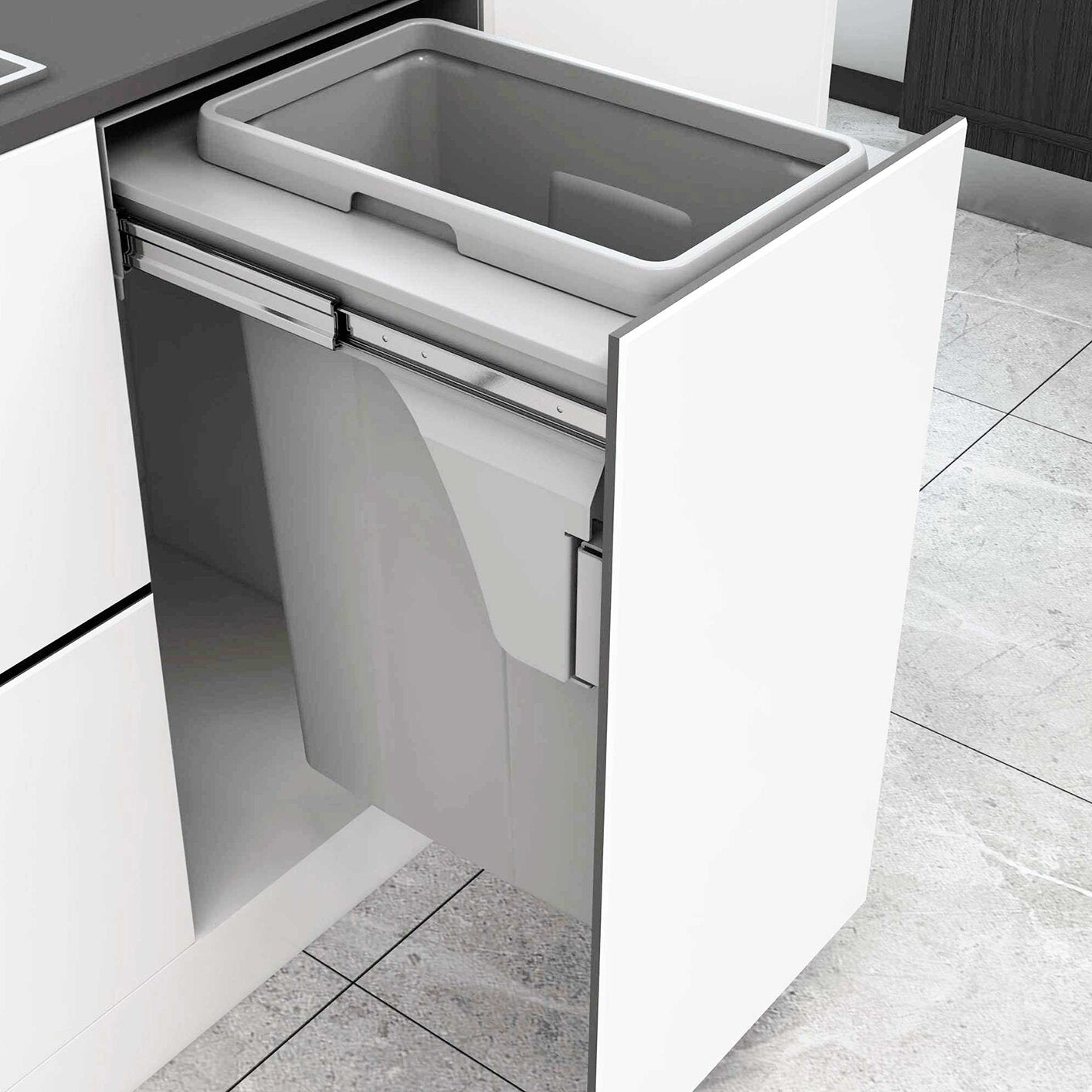

5. This side-mount waste bin pullout is designed for 400 mm (16 in) cabinets and includes one large 35L grey bin—ideal for high-capacity waste needs in kitchens or utility spaces. It features a soft-close mechanism and full-extension 45 kg (100 lbs) ball-bearing slides for smooth, durable operation. The fixed metal lid helps suppress odors, while the integrated clip-on ring conceals the bag liner and includes a handle for easy removal. Perfect for taller base cabinets, it fits interior dimensions of 506 mm depth, 570 mm height, and 362–368 mm width, offering a sleek and efficient waste solution.

6. This side-mount waste bin pullout system is designed for 400 mm (16 in) cabinets and includes one spacious 35L white bin—ideal for high-capacity waste or recycling. It features a soft-close mechanism and full-extension 45 kg (100 lbs) ball-bearing slides for smooth, quiet, and reliable operation. A fixed metal lid helps contain odours, while the clip-on ring conceals the bag liner and includes an integrated handle for easy bin removal. Perfect for taller cabinet installations, it fits interior dimensions of 506 mm depth, 570 mm height, and 362–368 mm width, combining function with a clean, modern aesthetic.
