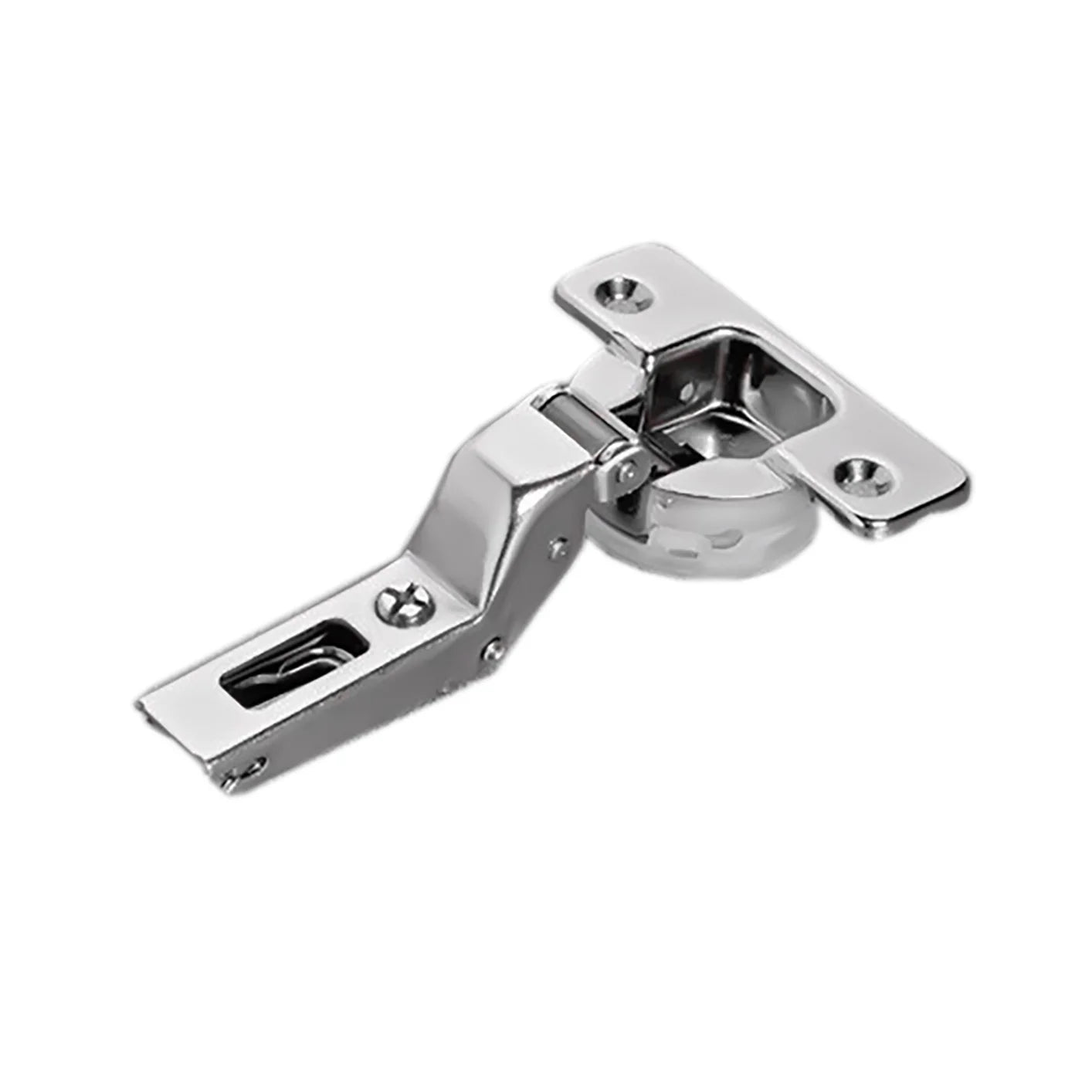

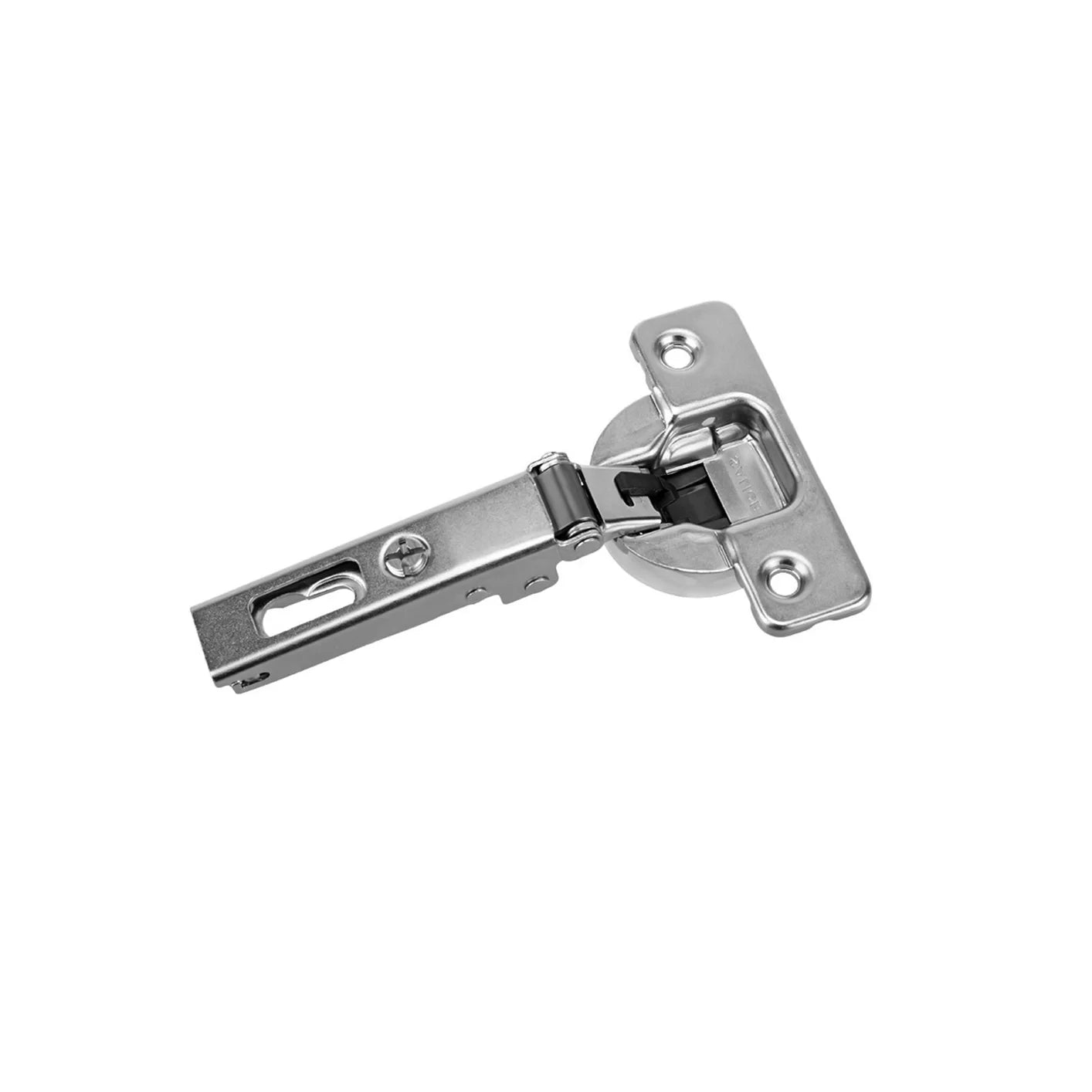

110 Degree, Full Overlay, Silentia+ Hinge, Logica

Specifications

Adjustment Type: Speed Switch, Angle: 110°, Application Type: Full Overlay, Closing Type: Soft-Close, Door Type: Standard Door, Finish: Nickel, Hinge Cup Depth: 13.5 mm, Hinge Cup Diameter: 35 mm, Hinge Door Drilling Distance: 3 to 6 mm, Hinge Door Thickness: 16 to 26 mm, Mounting Type: Logica (Tool-Less).

Product Description

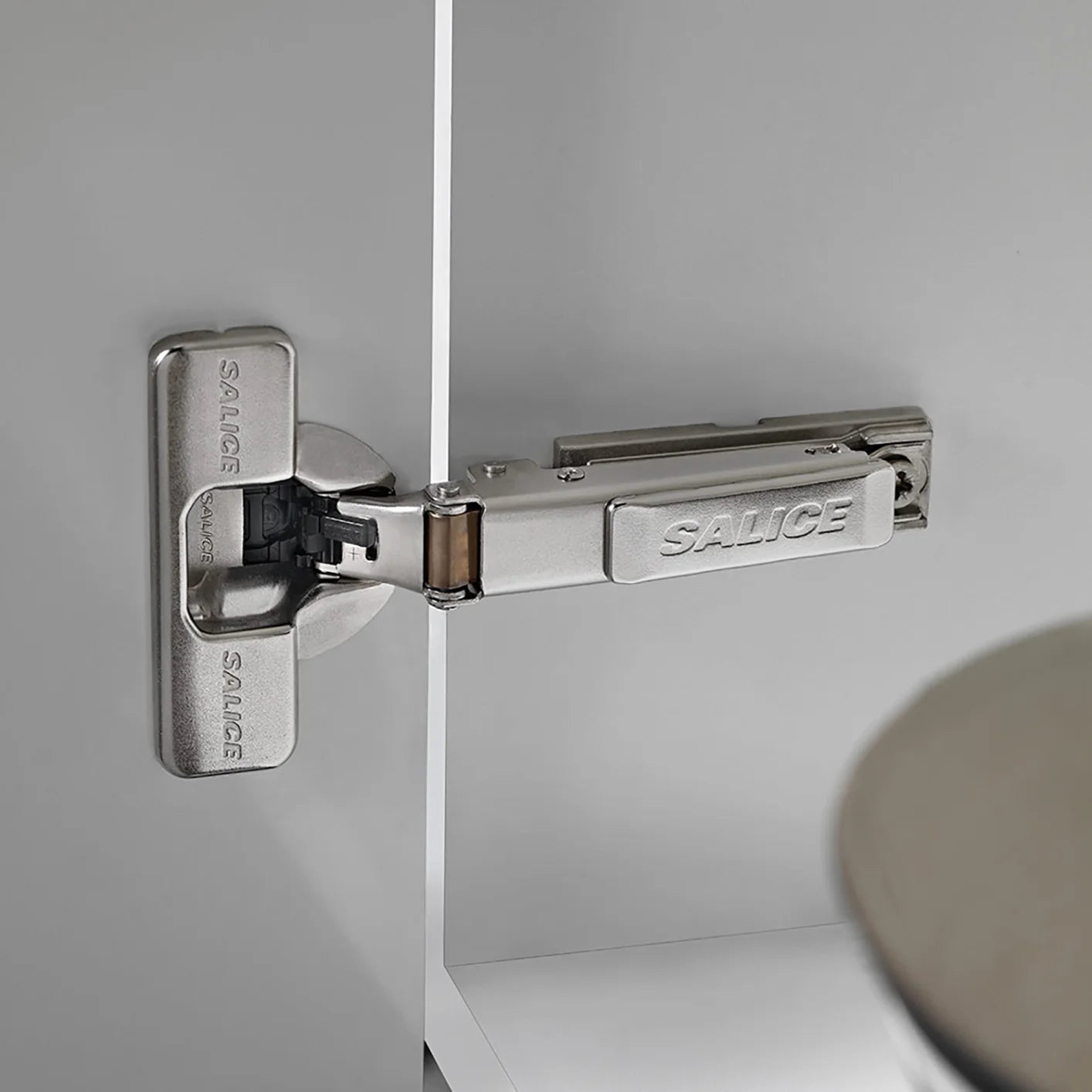

Silentia+ ensures perfect and consistent door closing under any condition, use, or application. Its innovative soft-close technology delivers excellent performance across the entire hinge range. Silentia+ incorporates multiple advanced components within a compact design, preserving the sleek aesthetics of the first-generation hinges. Additionally, it features an innovative switch that delays the decelerating action, allowing even special doors to achieve the ideal soft-close strength.

Product Advantages
The hinges include an adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup. The deceleration can be easily adjusted using a simple switch. The hinge cup measures 35 mm in diameter with a depth of 13.5 mm and is suitable for doors ranging from 16 mm (5/8") to 26 mm (1") thick. It provides a 110° opening angle and supports a door drilling distance (K) from 3 to 6 mm. Silentia+ hinges are compatible with all traditional Series 200 mounting plates as well as all Domi snap-on mounting plates.
